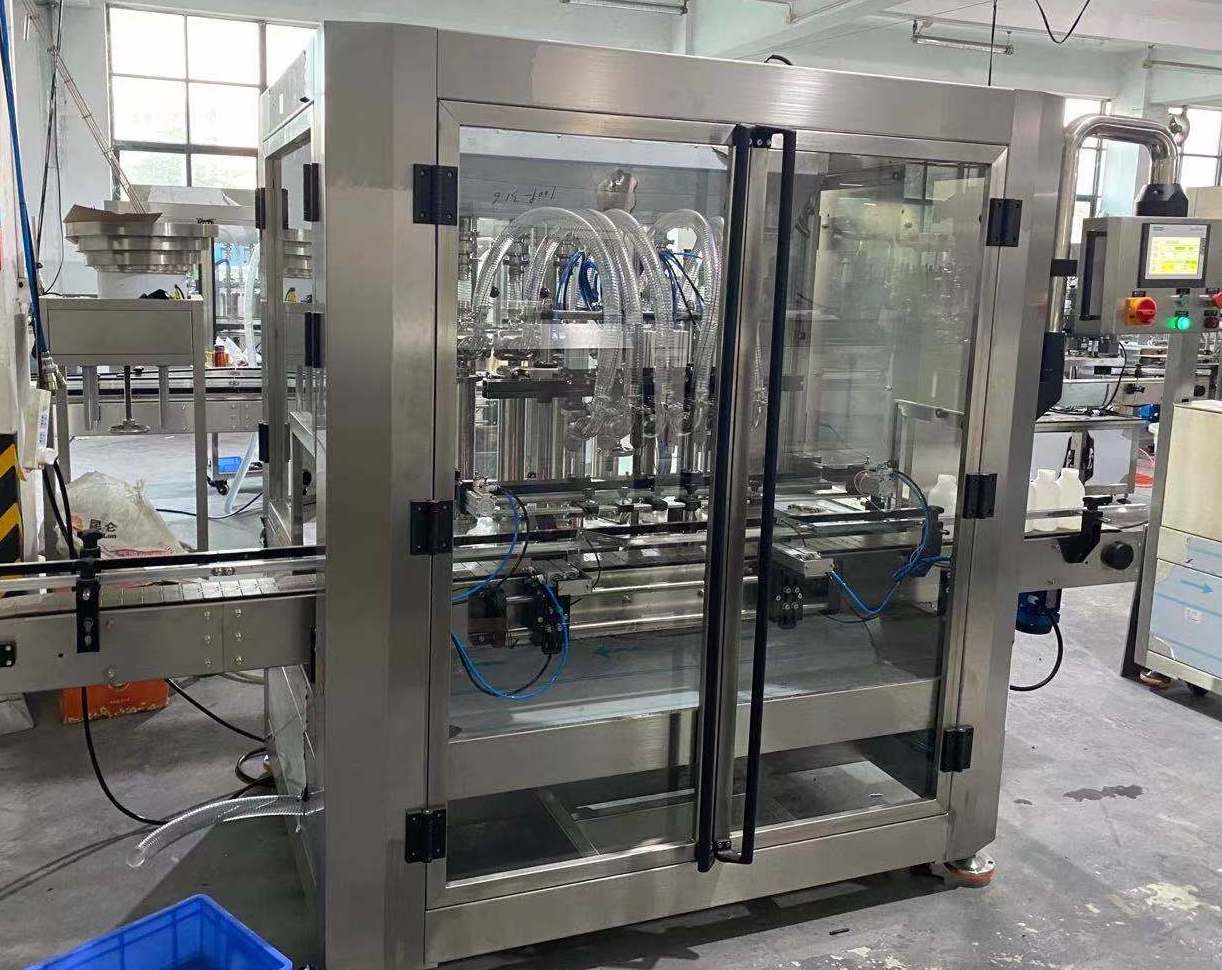

Automatic linear type Bottle cleaner Alcohol filling capping
labeling machine
This type automatic filling machine is a new generation of
automatic filling machine developed by our company based on years
of production experience and absorbing the world's advanced
technology. It uses the piston quantitative principle, electrical
and pneumatic components are selected from world-renowned brands,
and plc cooperates with people. Machine interface control, novel
design, beautiful appearance, friendly interface, strong
adaptability, simple operation, accurate filling volume, convenient
maintenance, etc. Widely applicable to the filling of various
liquids, viscous bodies, pastes, can be filled Pack semi-fluid
containing particles, paste, sauce, etc.
Application: detergent, oil, toilet cleaner, soap water, sauce,
jam, honey,detergent,syrup
Capacity: 500-3000 bottles / hour (500ML)
Containers applied for: PET /glass bottle of all volumes and shapes
Filling system: piston filling.
Major Characteristics:
(1). Linear piston filling, 4-12 heads filling heads high
efficiency with high production capacity .

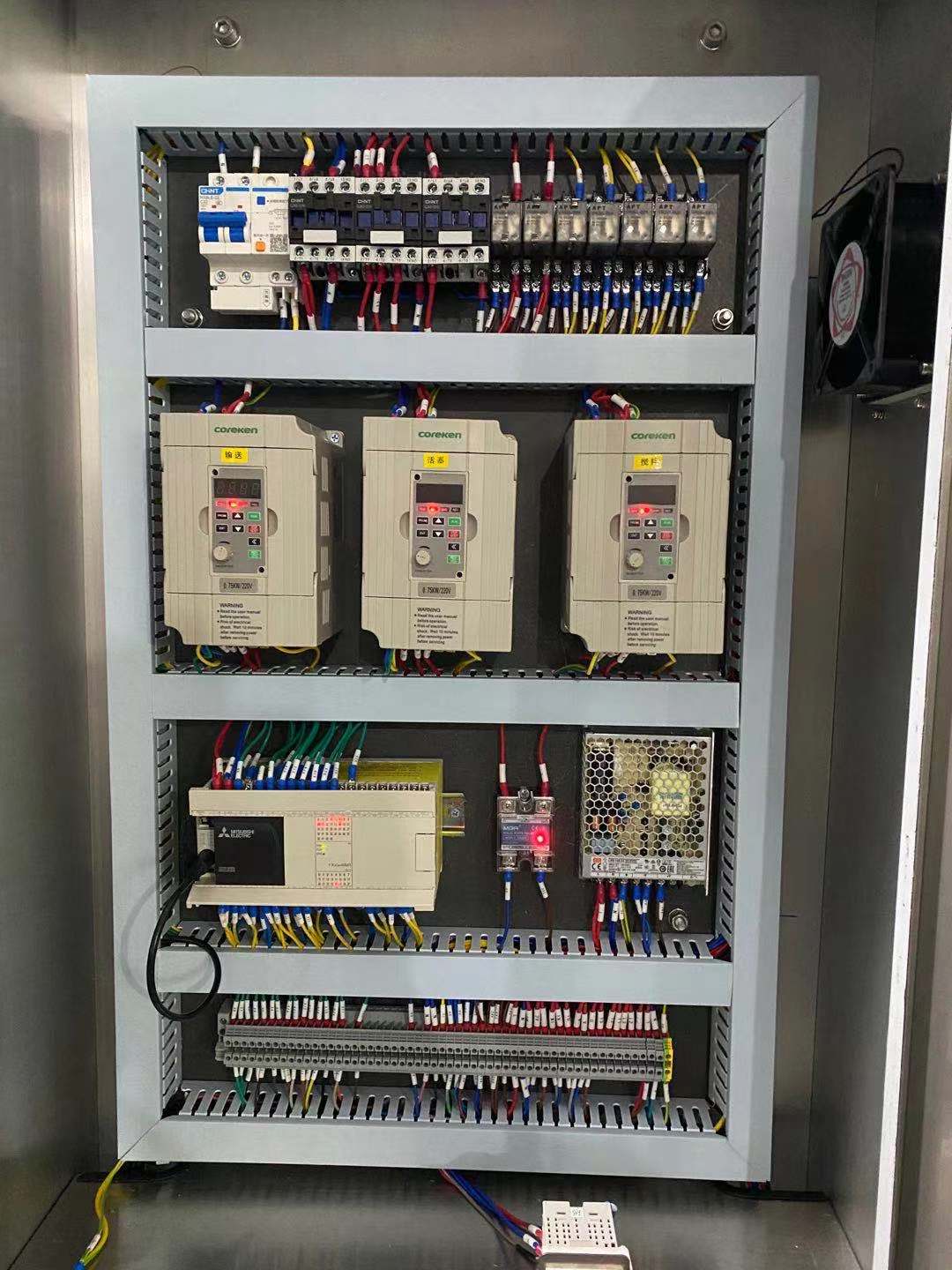

(2). PLC controlled,colored touch screen ,Easily connected with
capping machine and labeling machine
(3). Two channel standard safety electric circuit to make sure
equipments running safely.
(4). No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan
plug seal with the function of self-compaction, maintenance free.
Technical Parameters:
| Filling capacity | 200-1000ml |
| Filling speed | 2000-2200 bottles / hour@200ml |
| Filling accuracy | ＜±1% |
| Power supply | 380V 50HZ |
| Motor Power | 2.8KW |
| Air pressure | 0.6-0.8MPa |
| Machine size | 2000*1600*1900mm |
| Machine weight | 400KG |
Configuration List:
Company profie
Our ProductionLabelong focus on filling, packing & water treatment
field, our factory takes up 60000 square meters ,more than 30
Professinal Tehchnicians and workers which is one of the
professional & reliable Chinese manufacturers & provider for liquid
& semi-liquid filling & packaging machinery, blow molding machines
and water treatment systems with reliable quality & pretty good
after sale service with CE certification & ISO9000:2001
certification.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000BPH |
| 5 | Carbonated drink production line | 3,000-18,000BPH |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 8-30 Packs Per Minutes |
Labelong Packaging not only have a large range of quality packaging
machinery parts at very competitive prices, we also have an
experienced team of Customer Service Engineers who can perform
installations, preventative maintenance and general maintenance for
your organisation.
Contact us today to discuss your manufacturing challenges and how
we can assist your company to increase production and profitibilty.
Labelong Packaging's services are constantly evolving, providing
solutions for our customer's changing and expanding requirements.
Shipping
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good
quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy
your machines?
A: We offer you the high quality machines with one year guarantee
and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the
machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare
parts list for you refer.
