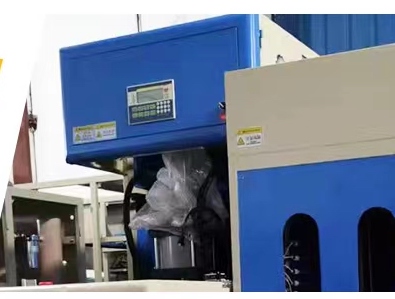

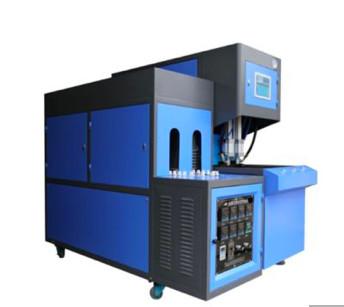

20liter 20L 5 Gallon Semi Automatic Plastic Pet Water Bottle Blowing Machine Blow Molding Machine

Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-5 gallons. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle cosmetics, wide-mouth bottle etc.

Free Bottle Design
Various kinds of Water and Juice Bottle Mold/ Edible food Oil Bottle Mold/Shampoo Bottle Mold

1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.
