2000BPH Rinsing Capping Water Bottle Filling Machines

Ask Lasest Price
Brand Name :	Labelong
Model Number :	RCF-W14-12-5
Certification :	CE
Price :	USD40000-50000/SET
Payment Terms :	T/T OR L/C
Supply Ability :	50-100SET/YEAR
Delivery Time :	20-40 days

Add to Cart

Product Details
Company Profile

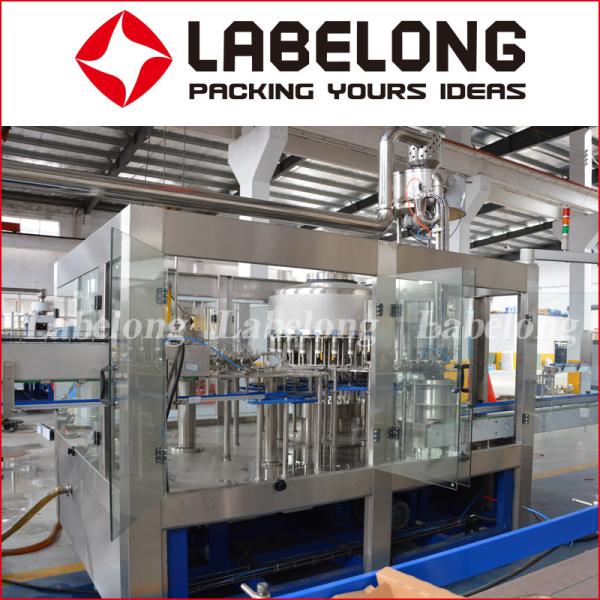

2000BPH Rinsing Capping Water Bottle Filling Machines

2000BPH Rinsing Capping Water Bottle Filling Machines

Product detail

Water Bottle Filling Machines with capacity from 2000BPH to 24000BPH. it is easily and conveniently to operate.The empty bottles can be turned over 180° Along the conveying rail. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water. The filling valve material is SUS304. The filling system has liquid level automatic control. Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate.

Technical Parameter

Model RFC-W series	14-12-5	16-16-5	24-24-8	32-32-10	40-40-10	50-50-12
Washing-Filling-Capping	14-12-5	16-16-5	24-24-8	32-32-10	40-40-10	50-50-12
Producing capacity (600ml)	2000-4000 (bph)	5000-7000 (bph)	8000-12000 (bph)	12000-15000 (bph)	16000-20000 (bph)	20000-24000 (bph)
Applicable bottle (mm)					φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2)					2~3
Outside vacuum pump power (kw)	Main motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw	Main motor 7.5kw	Main motor 9.5kw
Overall dimension (mm) (LxWxH)	2100x1400 x2500	2460x1720 x2650	3100x2100 x2650	3500x2500 x2650	4600x1800 x2650	5200x4500 x3400
Weight(kg)	2500	3500	4200	5500	6800	7600

Configuration List:

Our factory

Shipping photo

RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.

Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.

Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.

Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.

No.	Production line category	Capacity
1	Hot filling production line	3,000-36,000BPH
2	Beverage processing System	1,000 Ltrs/H to 10,000 Ltrs/H
3	Bottled water production line	3,000-36,000BPH
4	5L Large capacity bottled water production line	700-5,000b/h
5	Carbonated drink production line	3,000-18,000b/h
6	Pulp juice production line	5,000-22,000BPH
7	Oil Filling line	3,000-10,000BPH
8	Linear Filling machine	300-900BPH
9	Bottlle Unscrambler	Up to 20,000BPH
10	Barrelled water production line	300-2000 bucket/H
11	Water Treatment system	1,000 Ltrs/H to 10,000 Ltrs/H
12	OPP Labeling machine	6,000-24,000BPH
13	PVC Shrink Sleeve Labeling machine	6,000-24,000bph
14	Automatic Blow molding machine	1,000-7,000BPH
15	Full-automatic Film Wrapper & Shrinker	5-20packs
