    100BPH Semi Automatic drinking water Bottle 5 Gallon washing Filling capping Machine

    Ask Lasest Price
    Brand Name : Labelong
    Model Number : WFC-100
    Certification : CE
    Price : USD1650
    Payment Terms : T/T OR L/C
    Supply Ability : 50-100SET/YEAR
    Delivery Time : 20-40 days
    • Product Details
    • Company Profile

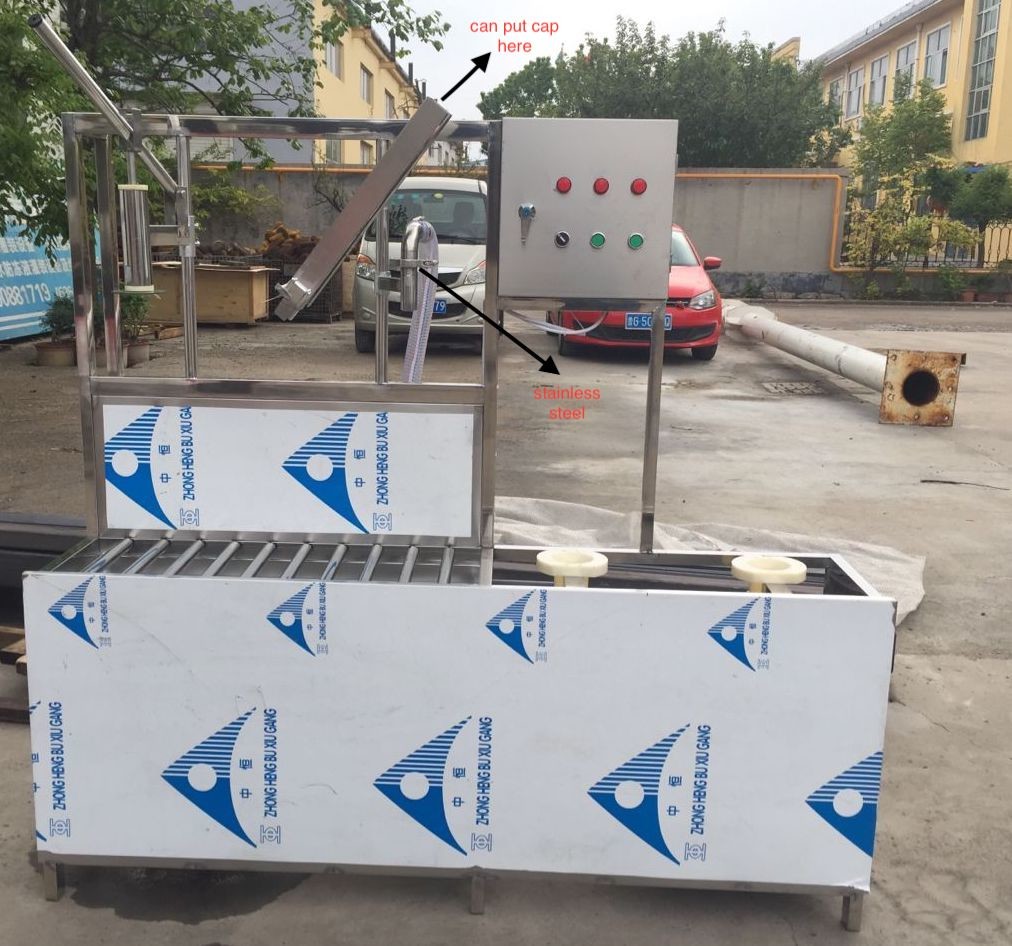

    100BPH Semi Automatic drinking water Bottle 5 Gallon washing Filling capping Machine


    100BPH Semi Automatic drinking water Bottle 5 Gallon washing Filling capping Machine

    Small capacity 100BPH industrial bottle filling machine, works harmoniously with air-conveyor belt, it holds the bottles by the neck when transporting. This machine is used to fill water into pet bottle and with screw caps capping function.
    Integrated three function
    1. Rinse the empty pet bottle
    Neck Control with plastic snap on the gripper.
    Water distributor combined with Food Grade Rubber plate & SUS304 cover.
    SUS304 water collecting tray
    Spraying inject design, can completely washing the bottles.
    Washed water recycling system, for water saving !! (Washed bottle---drip in water tank--water pump---raw water tank)
    2. Filling the rinsed bottles
    The entire filler is isobar filling system.
    High accurate SUS304L construction filling nozzle, make sure high accurate filling level
    SUS304L liquid bowl, & pipeline system.
    No bottles, no filling
    Annulus Liquid bowl, with automatic water level controller
    3. Capping the filled bottles
    Place & capping system. Automatic caps arranging, feeding.
    Electromagnetic capping heads, with burden discharge function,
    All 304stainless steel construction
    No bottle no caps delivery.
    Automatic stop when lack of bottle.
    Applied forPure water, mineral water, spring water
    Suitable for3/5 Gallon PET bottles
    Production capacity80-90bph @ 5 gallon bottle
    Filling headsSingle
    Washing headsTwo
    Capping headsSingle
    MaterialStainless steel
    Machine Size1600*500*1620mm
    Packing size1800*710*1800mm
    Machine weight120kg
    PRICEUSD1650 EXW Factory

    We have other models
    ModelWFC-100WFC-200WFC-300WFC-450WFC-600WFC-900WFC-1200
    Rated Production
    Capacity (bph)
    1002003004506009001200
    Installed Capacity1.31.73.83.87.59.713.5
    Related Voltage(V)380V/HZ380V/HZ380V/HZ380V/HZ380V/HZ380V/HZ380V/HZ
    Weight (kg)68080015002100300035004500

    100BPH Semi Automatic drinking water Bottle 5 Gallon washing Filling capping Machine100BPH Semi Automatic drinking water Bottle 5 Gallon washing Filling capping Machine100BPH Semi Automatic drinking water Bottle 5 Gallon washing Filling capping Machine
    Configuration List

    Our factory


    Shipping photo


    RFQ
    Q1: Are you a trading company or a manufacturer?
    A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.

    Q2: What's your guarantee or the warranty of the quality if we buy your machines?
    A: We offer you the high quality machines with one year guarantee and supply long life technical support.

    Q3: When can I get my machines after I paid?
    A: The delivery time is based on the exact machine you confirmed.

    Q4: How can I install my machines when they arrive?
    A: We will send our engineers to your factory to install the machines and train your staffs how to operate
    the machines.

    Q5: How about the spare parts?
    A: After we deal with all the things, we will offer you a spare parts list for you refer.
